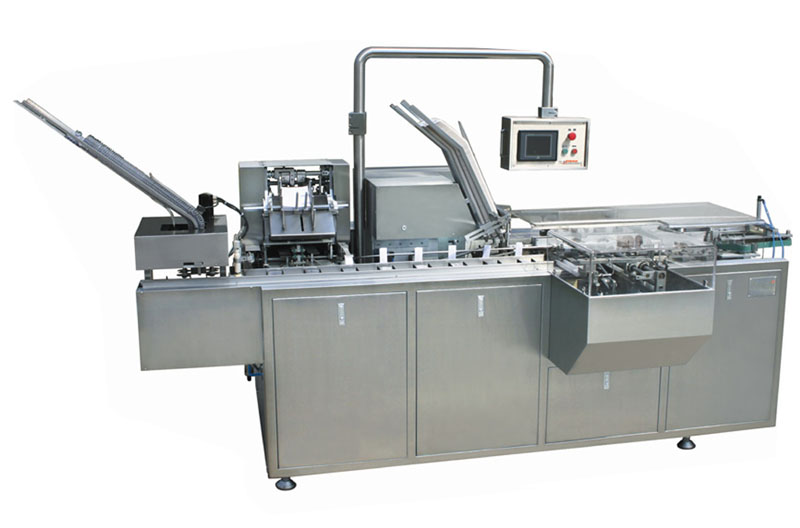

The CP-100 cartoner is suitable for packing tablets, capsules,suppositories,and similar products.It consists of direction folding (1-4folds)and feeding equipment, cardboard case forming and feeding, batch number printing,sealing of case tongues at both ends etc.The whole encasing process is finished automatically. It can be added hot-glue machine
|
Max Encasing Speed： |
100 Boxes/min |
|
Sheet Case Dimensions: |
>40×35×3.5mm <150×87×50mm |
|
Cardboard Case Dimensions： |
Min：70×25×14mm |
|
Max：158×90×67mm |
|
Cardboard thickness： |
250~350g/m2(according cardboard size) |
|
Main Motor Power ： |
0.75kw |
|
Power Supply： |
Three Phases Four Wires:
380V 50Hz (220V 60 Hz) |
|
Air Compressor Pressure： |
0.5 Mpa >0.6m3/min |
|
Air Consumption： |
≥ 0.9m3/h |
|
Relative Humidity: |
Less than 70% |
|
Working Noise： |
<85 dB |
|
Overall Dimension(L×W×H): |
2800×1350×2000mm |
|
Weight： |
1200 Kg |
