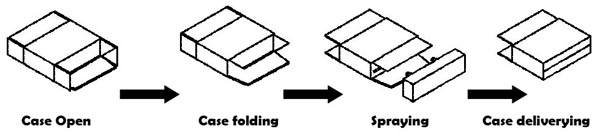

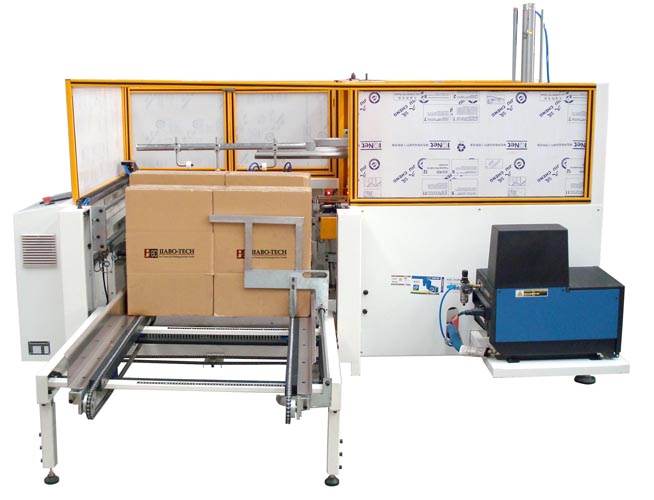

This automatic case erector can complete the process of carton erecting, vertical forming, bottom flaps folding and bottom hot-glue sealing automatically according to programs. With high efficiency, high speed, easy size changeover, stable and safe in operation, reliable in performance, etc.
|
Model |
CTP4030 |
CTP6040 |
CTP8055 |
|
Min. Carton Size (L*W*H)(mm) |
200*150*100 |
250*200*150 |
400*250*300 |
|
Max. Carton Size (L*W*H)(mm) |
400*300*300 |
600*400*400 |
800*500*550 |
|
Height of tabel (mm) |
700+(0-30) |
800+(0-50) |
|
Adhensive tape used |
BOPP,PVC,Kraft Paper Tape |
|
Width of adhensive tape (mm) |
48 |
60 |
72 |
|
Voltage (V/HZ) |
AC 22O/50 110/60 |
|
Power(W) |
180 |
|
Gas Pressure (Mpa) |
0.5-0.6 |
|
External Dimensions (L*W*H) |
2100*1920*1750 |
2300*1700*1970 |
2300*1700*1970 |
|
Net Weight (Kg) |
500 |
545 |
600 |
