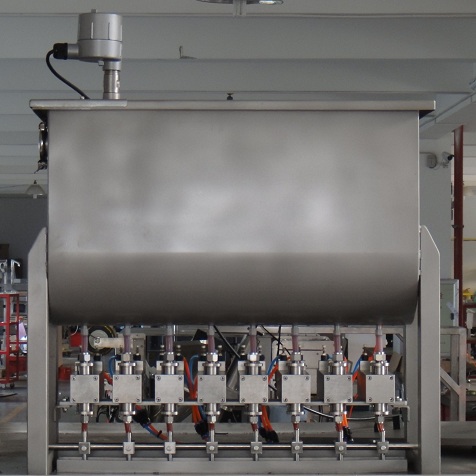

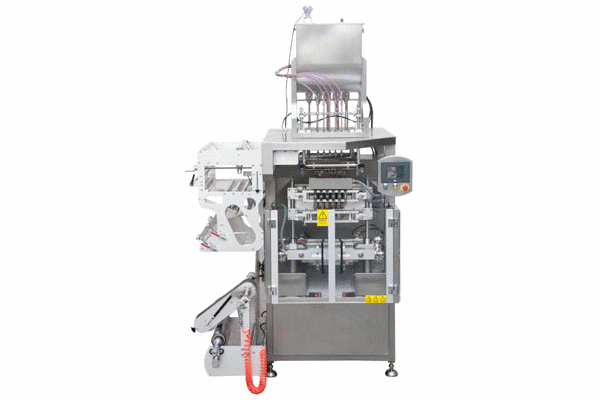

-Multilanes Vertical Form Fill Seal Machine with Pump Filler & Material Hopper.
-High Speed outputting for 4 sides seal sachet, max 10lanes
-Stainless steel machine consturctions, reliable & durable running.
-Application for 1-100m liquid/paste products(such as sauces; ice lollies; alcohol,shampoo, etc.)
-Equiped with eyemark sensor for prints registration, date codes printer.
-Servo motor driven, controlled by PLC, & touch screen operation panel.
|
Model |
MPL500 |
|
Product |
Liquid&Paste |
|
Dose Weight |
10-20G |
|
Dose Way |
Hibar Pump |
|
Accuracy |
+-1% |
|
Sachet Shape |
4side seal sachet |
|
Sachet Width |
40-60 |
|
Sachet Length |
140mm |
|
Speed |
40strokes/min |
|
No of lane |
5lanes |
|
Capacity |
200Sachets/min |
|
Packing Film |
Laminated Film |
|
Air Pressure |
0.6-0.8Mpa |
|
Air Consumption |
0.4m3/min |
|
Voltage |
220V,50HZ, 1Phase |
|
Power |
6.0Kw |
|
G.W. |
800kg |
|
Dimension(L×W×H) |
1300×1200×2200mm |
