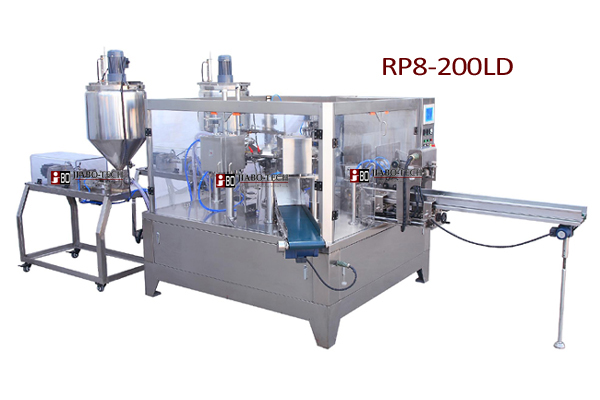

-Rotary Bag OPEN/FILL/SEAL Machine with Pump Filler & Material Hopper.
-6-8 rotary Packing stations fitte with unique mechanism
-Stainless steel machine consturctions, reliable & durable running.
-Application for 100-1000ml(up to 2000ml) liquid/paste products(such as sauces; juice; alcohol,shampoo, etc.)
-Servo motor driven, controlled by PLC, & touch screen operation panel.
-Qucik changeover and operatin-safety protection.
Model |
RP6-200L/300L |
BP8-200LD/300LD |
Bag application |
Premade bag: flat/stand-up/corner spout bag/etc |
Rotary stations |
6 |
8 |
Bag Width: |
W100-210mm/ W200-300mm |
W100-210mm/ W200-300mm |
Bag Length: |
L100-350mm/ L200-450mm |
L100-350mm/ L200-450mm |
Filling range |
100-1000ml/ 200-2000ml |
100-1000ml/ 200-2000ml |
Product Filler |
Piston Pump Filler or servo driven Pump filler(1 or 2 filling stations) |
Powder supply |
220V/380V; 50Hz, 2.8-3.5kw |
Air Supply |
0.6-0.8Mpa |
Machine weight |
1000kg/ 1200kg |
1200kg/ 1400kg |
Machine Size |
W1650-L2200-H1650mm/
W1850-L2650-H1650mm |
W1680-L2350-H1650mm/
W1980-L2750-H1650mm |
