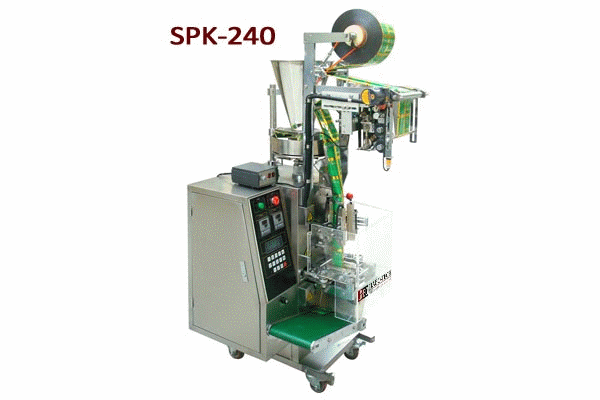

-Compact Vertical Form Fill Seal Machine with volumetric cup filler.
-Stainless steel machine consturctions, reliable & durable running.
-Application for 1-300ml powder material(such as sugar, 3 IN 1 coffee; rice, nuts, etc )
-Various bag/sachet formats: 3/4 sides sealed; stick pack(or central sealed) etc.
-Equiped with eyemark sensor for prints registration, date codes printer.
-Frequency speed & TEXT Panel controls, PLC with Touch Screen system as option.
Model |
SPK-240 |
SPK-300 |
SPK-400 |
SPLK-300S/P |
Bag type |
3 side seal/ 4 side seals bag |
Stick/Pyramid |
Bag Width: |
W30-120mm |
W30-150mm |
W30-200mm |
W10-150mm |
Bag Length: |
L30-170mm |
L30-350mm |
L30-350mm |
L30-350mm |
Filling range |
1-100ml |
1-200 |
1-300ml |
1-300ml |
Doser |
Volumetric cup filler(1-3 sets) |
Powder supply |
220V/380V; 50-60Hz, 1.4-2KW |
*Air Supply |
0.6-0.8Mpa |
Machine weight |
200kg |
250kg |
300kg |
250kg |
Machine Size |
W650-L750-H1660 |
W930-L730-H1700 |
W950-L840-H1900 |
W930-L730-H1700 |
