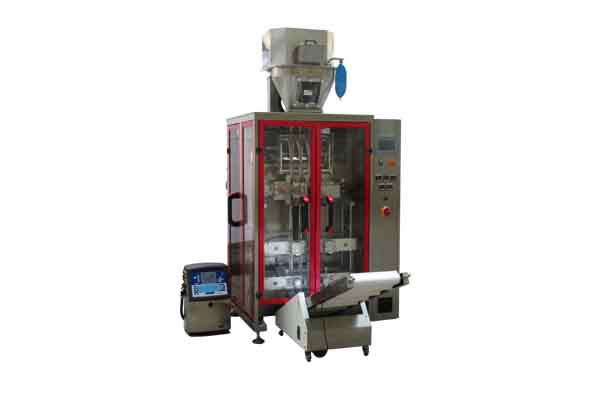

-Multilanes Vertical Form Fill Seal Machine with Pump Filler & Material Hopper.
-High Speed outputting for stick pack , max 8lanes
-Stainless steel machine consturctions, reliable & durable running.
-Application for 5-50g powder products(such as medicine, milk powder)
-Equiped with eyemark sensor for prints registration, date codes printer.
-Servo motor driven, controlled by PLC, & touch screen operation panel.
|
Model |
MPF480 |
|
Product |
Powder |
|
Dose Weight |
5-50G |
|
Dose Way |
Auger Filler |
|
Accuracy |
+-1% |
|
Stick Shape |
Stick, Flat Cut |
|
Stick Width |
20-50mm |
|
Stick Length |
70-180mm |
|
Speed |
30strokes/min |
|
No of lane |
4-8lanes |
|
Capacity |
120sticks/min |
|
Seal type |
Fin Seal |
|
Packing Film |
Laminated Film |
|
Air Pressure |
0.6-0.8Mpa |
|
Air Consumption |
0.4m3/min |
|
Voltage |
220V,50/60HZ, 1Phase |
|
Power |
4.2Kw |
|
G.W. |
750kg |
