Coffee Capsule:3-15g@20-100CPM 1-4LANES
| CONTACT LINK |
| jiabo@jiabo-tech.com |
| aftersales@jiabo-tech.com |

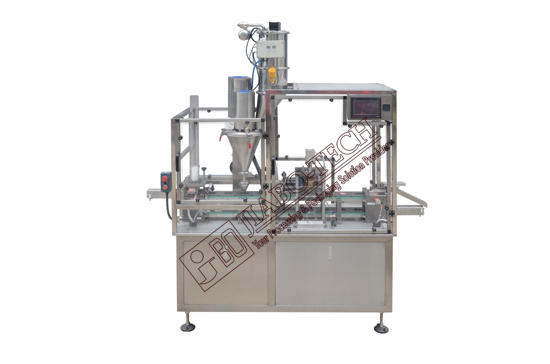

-Automatic coffee capsule fill/ seal machine for coffee industry.
-High Speed outputting(2-8 lanes):up to 240PPM).
-Stainless steel machine consturctions, reliable & durable running.
-Application for 3-15g coffee powders capsule package
-*OPTION: Pick & place system for flow wrapping package.
-PLC controlled, & touch screen operation panel.
|
Model: |
RPC-1 |
CFP-K2 |
CFP-K4 |
|
Fill Tool |
Auger |
|
Fill Range: |
10-15G |
|
Fill Accuracy: |
± 1 % |
|
Capacity: |
25strokes/minute*1 |
25strokes/minute*2 |
25strokes/minute*4 |
|
Containers : |

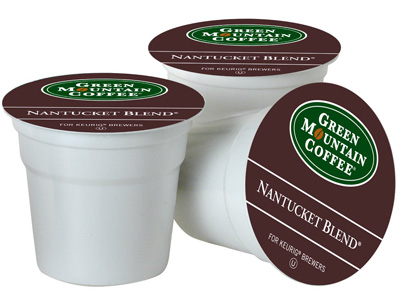

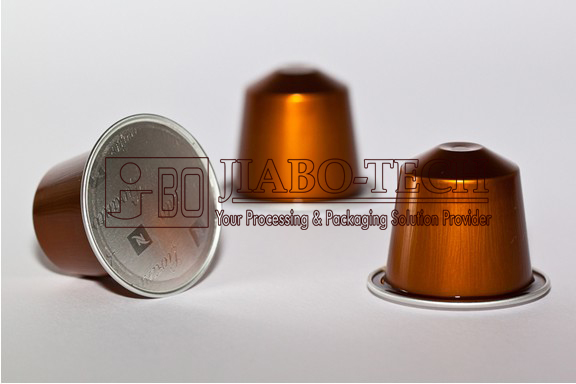

Coffee Capsule K CUP, Nespresso, Lavezza etc |
|
Container Size |
Max Diameter:60mm |
|
Lid |
Pre-cut Foil |
|
Hopper Capacity: |
8L |
30L |
60L |
|
Air consumption |
0.1m3/minute |
0.2m3/minute |
0.4m3/minute |
|
Air Pressure |
0.6-0.8Mpa |
|
Voltage |
3 Phase, 220V, 60HZ |
|
Power Consumption |
2.2kw |
4.7KW |
7KW |
|
Overall Dimension |
L1000×W900×H2000mm |
L3500×W830×2050mm |
L3500×W1630×2050mm |
|
Net Weight |
280KG |
1200KG |
1800KG |
|
Operation: |
Automatic |
Automatic |
Automatic |
|
Delivery Time |
60days |
120days |
120days |
