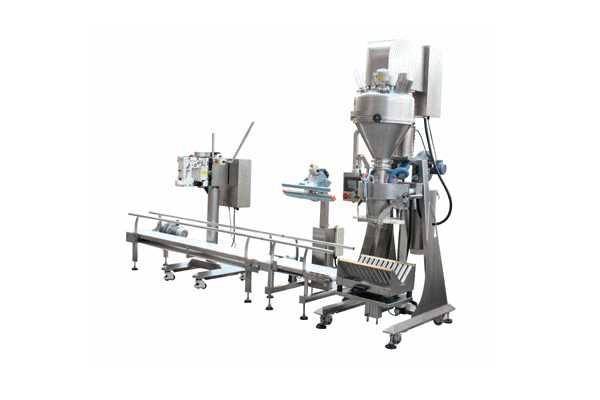

Fill-TO-Weight Filler are use scales and laodcell components to determin an accurate weight reading before, during and after each fill cycle.
Multi wall paper & plastic bags, cardboard cartons, kraft bag etc
Main machine constructed from SS304
All contact parts are highly polished meet sanitary requirement
Speed inverter control for high speed and accuracy
Easy to disassemble augers no toolings
Innovative molded bag clamp for eliminating powder leakage
Model |
WF50V |
WF50 |
Products Filled: |
Powder& Small Granule |
Powder& Small Granule |
Dosing Technique |
Weighing |
Weighing |
Filling Mode: |
Vertical Auger, Servo Motor Driven |
Dual Screw |
Weigh/Fill Range |
0-50KG |
10-50KG |
Fill Speed: |
3bags/minute |
3bags/minute |
Fill Accuracy: |
5-25KG,± 10g 0-5kg, ± 3g |
± 10-30g |
Packaging Type: |
Multi wall paper bags, cardboard cartons, plastic bags, cylinder |
Operation: |
Manual Only |
Manual Only |
Delivery Time |
Within 10 weeks. |
Within 10 weeks. |
Special Features: |
Turnkey System Avaiable |
Turnkey System Avaiable |
Power Consumption |
Single Phase, 220V,50/60HZ, 2.75KW |
Single Phase, 220V,50/60HZ,1.8KW |
Air Consumption |
0.1m3/minute, 0.6Mpa |
0.1m3/minute, 0.6Mpa |
Overall Dimension |
1095×1372×3030mm |
1470×980×2200mm |
Net Weight |
300KG |
345kg |
