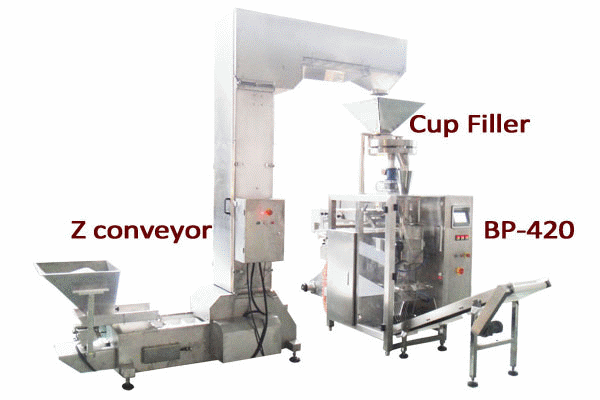

-Vertical Form Fill Seal Machine with cup Filler or weighers .
-Bag packing solution for smll granule products(up to 50kg) (such as sugar, salt, grains, etc. )
-Stainless steel machine consturctions, reliable & durable running.
-Feasible for many kinds of bag type, such as pillow type, gusset bag, flat bottom bag, etc.
-Equiped with eyemark sensor for prints registration, date codes printer.
-Servo motor driven, controlled by PLC, & touch screen operation panel.
Model |
BPL-420/520 |
BPL-630/730 |
BPL-1200 |
Bag type |
Central Sealed Bag/Flat bottom bag/gusset bag |
Bag Width: |
W80-200mm/ W100-250mm |
W100-300mm/ W140-350mm |
W390-590mm |
Bag Length: |
L80-300mm/ L80-350mm |
L100-400mm/ L100-450mm |
L100-800mm |
Filling range |
100-1000g/ 200-2000g |
200-3000ml/ 500-5000g |
5kg-50kg |
Product Filler |
Volumetric cup filler; linear weigher; Multiheads weigher |
Powder supply |
220V/380V; 50Hz, 2.5-6kw |
*Air Supply |
0.6-0.8Mpa |
Machine weight |
500kg/ 650kg |
850kg/ 950kg |
2450kg |
Machine Size |
W1020-L1300-H2200mm/
W1200-L1650-H2300mm |
W1150-L1600-H1950mm/
W1300-L1700-2200mm |
W1800-L2200-H2950mm |
