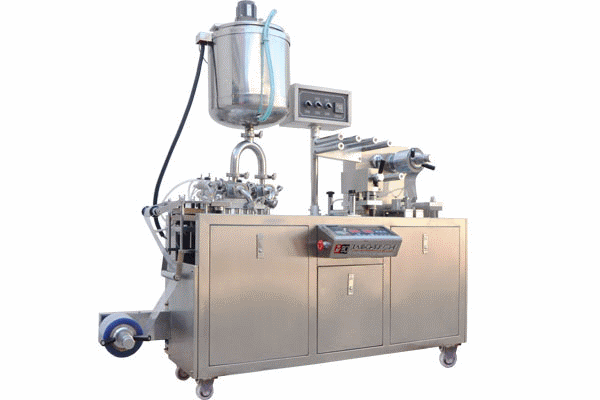

-Automactic Blister(small cup) Form Fill Seal Machine with Pump Filler & Material Hopper or tank.
-Stainless steel machine consturctions, reliable & durable running.
-Application for 5-30ml liquid/paste product(hot for chocolate; butter, honey; etc.)
-2 to 10 blister/cups output, Packaging speed range form 50PPM to 200PPM.
-Equiped with eyemark sensor for prints registration, date codes printer.
-Frequency speed & TEXT Panel controls, PLC with Touch Screen system as Option.
|
Model |
DBP-80 |
DBP-250 |
|
Max. Pg Material Width |
80mm |
250mm |
|
Packaging Speed |
20-30 cycles / min. |
|
Max. Forming Area |
L100-W80mm |
L150-W250mm |
|
Filling range |
5-30ml |
|
Product Filler |
Pump Filler (2 or 12 filling nozzles), Temper-kept hopper with blender |
|
Stroke range |
20-100mm |
30-150mm |
|
Packing Material |
PVC:0.15-0.5mm; PTP Aluminum foil: 0.02-0.035mm |
|
Powder Supply |
220v/380V/50Hz; 1.8Kw |
220v/380V/50Hz; 5.5Kw |
|
Air Supply |
0.6-0.8Mpa |
|
Machine weight |
450kg |
1450kg |
|
Machine Size |
W500-L1500-H1100mm |
W650-L3900-H1800mm |
